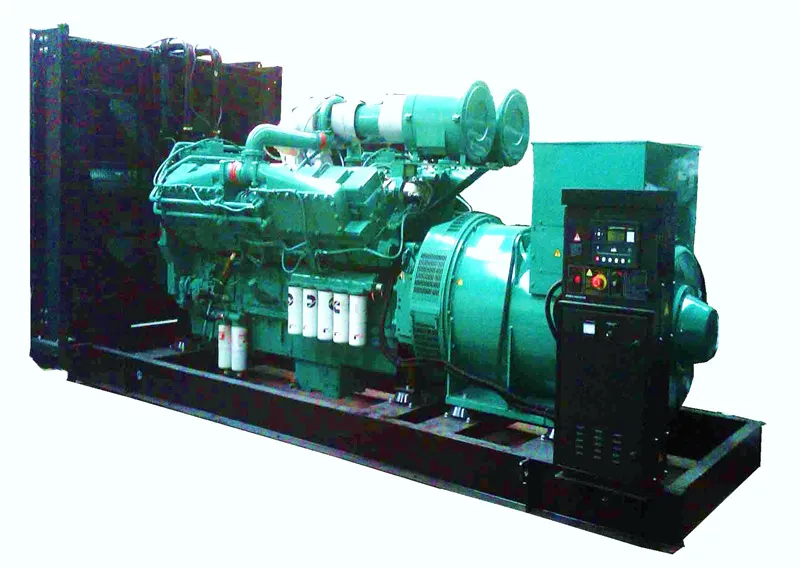

Genset Cummins Diesel Genset Cummins 6CTAA8.3-G2 200 Kva
Introduction - For Your Need To Know
The Cummins® 6CTAA8.3-G2 engine has a mechanical fuel system which is designed to deliver robust performance in the most extreme conditions. It also has electronic governor controls for superior engine speed stability and transient response. The cylinder head has 24-valves and bigger flow injector design which provides one of the highest power-toweight ratios in its class. At the same time, the 6CTAA8.3-G2 engine delivers better fuel economy and less smoke emission than similar engines.
This Fact Make This Engine ( Cummins 6CTAA8.3-G2), More Effisien and Low Maintenance While Operations Without Forgetting More Less Emissions and Continueing Improve This Engine More Better in The Future. This Diesel Engine 6CTAA8.3-G2 have a 180 Kwm@RPM 1500 and 187 Kwm@RPM 1800 ( Gross Engine Power Output ).
Genset Cummins 6CTAA8.3-G2 200 Kva -Series engines have established an unrivalled reputation for reliability. Engines in the series incorporate features to reduce maintenance and enhance performance in order to meet the most demanding requirements of generator set operation. Features
• Genset Cummins 6CTAA8.3-G2 200 Kva Coolpac Integrated Design - Supplied with coolingpackage and air cleaner kit for a complete power package.
• Single Poly Vee belt drive, for fan, alternator and waterpump, with self-tensioning idler for minimum maintenance.
• Inline-type Bosch P-Series pump operates at high injection pressures for cleaner combustion and low eremissions.
• Spin-on fuel filter and full-flow lubricating oil filter. • Top mounted Holset HX40W turbo-charger
• For increased power, fuel economy, and lower smoke and noise levels.
• Service and Support - G-Drive products are backed by an uncompromising level of technical support and after sales service, delivered through a world class service network.
Description:
Introduction -
For your information, Diesel Generator Set ( Genset ) Cummins ini Menggunakan Type Engine 6CTAA8.3-G2 , Dengan Configurasi 6 cylinder inline Engine. Seri dan type Engine Cummins 6CTAA8.3-G2 adalah salah satu varian Engine Dari Family Engine 6 Series ( Six Series ), Di mana Family Engine Cummins 6 Series ini terdiri dari 3 Type Engine dan 7 varian Engine yg berbeda Output Power Yaitu : 6 BT Series ; 5.9 Liter\5900 cc ( 6BT- Turbocharged- dan 6 BTAA - Turbocharged Air-to-air Chargedcooled ), 6 CT ; 8.3 liter\8300 cc ( 6 CT- Turbocarged- dan 6 CTAA - Turbocharged Air-to-air Chargedcooled ), dan 6LTAA - Turbocharged - Air-to-air charged cooled - ; 8.9 liter\8.900cc. Engine 6CTAA8.3-G2 ini adalah salah satu dari line up Engine Cummins yg sangat Handal, Efissien dan Compact di sertai dengan Turbocharged Air-to-air chargedcooled, Sehingga membuat Kehandalannya ini Sungguh Sangat di akui Oleh Competitornya. Salah Satu Ciri Engine Cummins yg tangguh ini Terbukti Ketika Engine Ini di Beban Pada Peak Power ( 100%) dengan Durasi yg Cukup Lama Tanpa Terjadi Sesuatu. Sehingga Engine Cummins Terkenal Sebagai Engine Heavy Duty. Meskipun Engine ini belum Memenuhi Regulasi Uji Emisi Euro. Akan Tetapi Justru Engine ini Lebih Mudah dan Sangat Simple Perawatannya Sehingga Sangat Menguntungkan Bagi Penggunanya, salah satu contohnya adalah ; Untuk Wilayah\Teritori di mana Kualitas BBM-nya Tidak harus Mensyaratkan Dengan Menggunakan Kadar Cetane Yg tinggi dan Sulfur yg Rendah maka Engine cummins ini pun masih mampu untuk mengkonsumsi Fuel ( Solar ) Dengan tingkat sulfur yg Tinggi ( Masih mampu mengkonsumsi Solar dengan Kualitas yg kurang Bagus ).
Diesel Generator Set ini Di Coupled Dengan alternator Stamford. Salah Satu Perusahaan yg Membuat alternator Ternama yang berasal dari Inggris yg Memiliki Reputasi Kelas Dunia yg Sangat Teruji Kehandalannya.
Spec and Data Sheet :
Engine type 6CTAA8.3-G2 ; Turbocharged Air-to-air Charged Cooled ; 6 cylinder inline ; Direct Injection ; 4 Store ; Bore x Stroke 114 x 135 mm ; Displacement 8.3 Liter\8.300cc ; Compression Ratio 17.3 : 1 ; Oil Capacity 27.6 Liter ;Generator Stamford ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8 dengan kapasitas 200 Kva Prime rating atau 160 Kw Prime Rating.
Scoupe Of Supply :
Digital control panel by deepsea or Similar, MCCB, muffler, flexible muffler, daily tank, battery with cable battery, Certificate Of Origin, Manual Book.
Warranty :
Garansi 1 tahun / 2000 jam operasi mana yang tercapai terlebih dahulu dan semua unit yg kami delivery sudah dilakukan test loadbank Di Workshop sebagai Standard Operasional Prosedure.
Harga :
Detail Price and Specification By Requested
