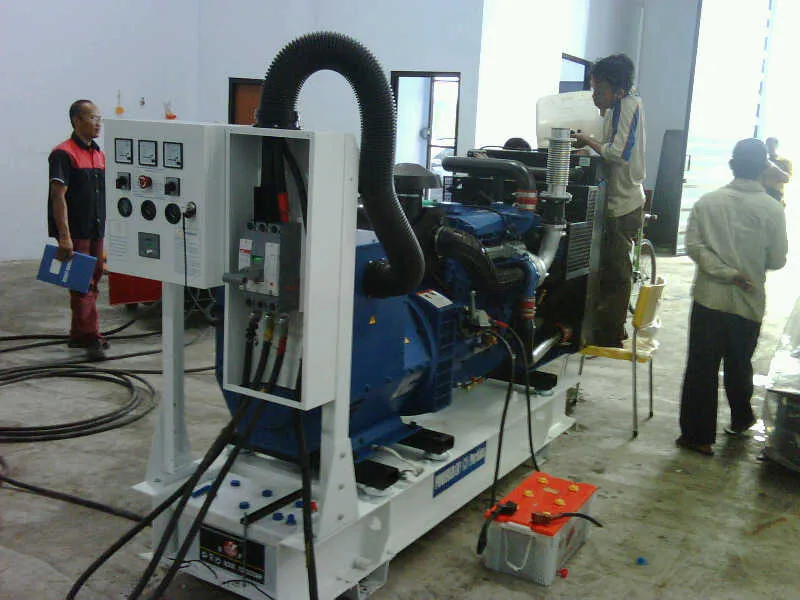

Genset Bekas Perkins Diesel Genset Perkins 1103A - 33G + Stamford 30 Kva Tahun 2016
Introduction - For Your Need to know :
These Used Genset Perkins Using Engine Type 1103A-33G, Capacity 30 Kva ; Open Type ; and Coupled by Genset manufacturing in China. This Type Engine Perkins is the Part of 1100 Series Family Engine ; With 3 Cylinder Inline Engine ; 3.3 liter\3.300cc is Small Enough Displacement Than The Competitor But Any One Value make this Engine Exellence Than The Other is : This Engine are Naturally Aspirated. So That Make This Diesel Engine ( 1103A-33G ) Have Small and Compact Design, So That Made it Consist Fuel Efficient When it Operate and the Another fact ; 1103A-33G Are Still Using manual Priming Pump ( Manual Fuel Injector Pump ) and manual Injector So this Perkins Engine Can Use Diesel Fuel With High Sulfur and Low Cetane Especially at The Territory unregulated Emmisions. And That You Need to know, Perkins 1100 Series Is the Well Known Engine In The World Because Of Durability, Performance, and Efficient.
History ( Back Ground ) of the Genset\ Diesel Generator Set :
Year Of Manufacturing 2015 ; Eks Stand By Office\Banking (Back up Power Only) ; Low Hour Operations ; Original Digital Control Panel By deepsea ; Build Up From UK ; Coupled In China ; In Good and Clean Condition ; Ready Prepare For Test Load Bank\Perfomance and Ready to Apply For that meet Your Power Electrical Requirement.
Detail Specification and Data Sheet :
Engine 1103A-33G ; Naturally Aspirated ; 3 Cylinder Inline Engine; Direct Injection ; 4 Stroke ; Bore x Stroke : 105 x 127 mm ; Displacement : 3.3 Liter\3.300cc ; Compression Ratio 19.25 : 1 ; Oil Capacity 8.3 liter ; Watercooled ; Generator Stamford ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. With Capacity 30 Kva Prime Rating or 24 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel for Genset Controller By Deepsea ( Original ) ; Build Up Open Type ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; New Painting Colour like an Original Paint or We can Change The Paint of Colour according to customer request ; Performance Test By Using Load Bank\Dummy Load equipment at Workshop.
Warranty :
3 ( Three ) Month or 500 Hour Operations Which ever come First Since Delivery unit ; Include Service Of Labour, Without Parts and Exclude Any Damages of this Genset if There is an Operational Error Occurs on site or Force Major.
Note And Important Information Related of This Unit
Engine Condition :
Hour Meter 3.500 Hour ( Before Periodical Service ), And Already Inspection, Assesment, and Servicing Covers All of Genset : for Leaking oil ; Van Belt ; Alternator Charging ; Generator Merge Test ; Function Test of Device Protection Panel Control : Rewiring Cable Hardness ; Injector and FIP ( Fuel Injector Pump ) Calibration ; Turbo, Etc. In Accordance With The Perkins manual Maintenance Procedure. Replacement : Engine Oil ; Oil Filter ; Fuel Filter ; Air Filter and any Other Parts While it Find Damages and Replacement. Crankshaft and Camshaft Both Of Them it Already Inspection, Assesment and Re-measurent and Still Standard Size Accordance From the Perkins manufacturing.
Perfomance :
80 % Load from The Brand New Genset Capacity - Brand New Capacity load is : 30 Kva \24 Kw or 36 Ampere @1500RPM ; 100% Load ). And The 80% Peak Power that it must be Achieved When the Unit Tested is ( The Calculation of Peak Power 80% Load - Genset Second ) : 30 kva x 0,8 (pf) = 24 Kw x 0,8 ( 80% ; Because of Second Hand Unit ) = 19 Kw or 29 Ampere ; ( 19 Kw : 0,66 = 29 Ampere ) ; ( 0,66 Result from √3 ; 3 is 3 Phase ) This is The Formulas to Calculation a Peak Power\Performance - Second Hand Genset.
19 Kw or 29 Ampere is the test result a Peak Power of Genset Second, and that It be a Promise must be achieved While tested with the loadbank ; Loadbank Equipment Using A heater and Cooling Van, that have load Characteristic Resistive and Inductive with have 1 Cosphi ( Pf ).
Description:
Introduction :
For Your Information Diesel Generator ( Genset ) Bekas Tersebut di atas Berkapasitas 30 Kva Prime Rating\24 kw - Di Coupled oleh Sebuah Pabrikan Genset yg berasal China ; Dan Genset tersebut menggunakan Engine Perkins Type 1103A-33G. Dimana Type Engine Tersebut menjadi salah satu line up dalam family Engine 1100 Series Perkins dengan configurasi 3 Cylinder Inline ; Displacement 3.3 liter\3.300 cc ; Naturally Aspirated Sehingga membuat Engine ini Memiliki design yg Compact Tetapi memiliki output maupun Torsi yg besar di semua lini mulai dari torsi bawah sampai Torsi Puncak. Di Coupled dengan Stamford Generator , Sebuah Perusahaan Generator Kelas Dunia yg sdh Terkenal dengan Reputasinya membuat Genset ini menjadi sangat Durable, Strong dan Effisien. Durable, Strong Dan Effisien Krn Engine Type 1103A-33TG2 krn Engine ini masih dapat Menggunakan Bahan bakar solar yg memiliki Kadar sulfur yg tinggi dan dan Kadar cetane yg Rendah sehingga membuat engine sangat cocok di gunakan Untuk Teritory atau Wilayah yg Peraturan Emisi Gas Buang nya tidak Terlalu Ketat.
History ( Back Ground ) Dari Genset Tersebut Di atas :
Tahun Produksi 2015 ; Bekas Pemakaian Office\Banking dan Hanya Sebagai Backup Power saja dengan Perawatan Berkala yg Rutin ; Hour Operation Masih Rendah ; Original Control Panel By Deepsea ; Genset Tersebut di atas Di Coupled dan di Assembly China ; COO ( Cerficate Of Origin ) Engine ini Dari United Kingdom ; Dalam Kondisi Prima dan sangat Terawat\bersih ; Siap untuk Test Run dan Loadbank\Performance dan Di Pakai untuk Menjawab Kebutuhan Power.
Detail Specification and Data Sheet :
Engine 1103A-33G ; Naturally Aspirated ; 3 Cylinder Inline Engine ; Direct Injection ; 4 Stroke ; Bore x Stroke : 105 x 127 mm ; Displacement : 3.3 liter\3.300cc ; Compression Ratio 19.25 : 1 ; Oil Capacity 8.3 liter ; Watercooled ; Generator Stamford ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. Dengan Kapasitas 30 Kva Prime Rating atau 24 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel By Deepsea ( Original ) ; Open Type Build Up ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; Sdh Di Painting Ulang sesuai Dengan Warna Pabrikan aslinya atau Bisa Di Rubah Warna Catnya sesuai dengan Permintaan Customer ; Performance Test dengan Menggunakan Loadbank\Dummy Load di Workshop.
Garansi :
3 ( Tiga ) Bulan atau 500 Jam Operasional Mana Yg Tercapai Terlebih Dahulu Sejak Unit Di Kirim. Dan Cover Garansi Hanya Jasa Only di Luar Spare Part dan Tidak Termasuk dengan Kerusakan Genset yg Disebabkan oleh Kesalahan Operasional di Site maupun Force major.
Note And Important Information Related of This Unit
Engine Condition :
Hours Meter Sebelum Di Lakukan Perawatan Berkala di Workshop adalah 3.500 Jam Dan Sudah di lakukan Inspection, Assesment dan Perawatan yg Meliputi : Kebocoran Oli, Kelayakan van Belt ; Alternator Charging ; Merge Test Generator ; Test Fungsi Proteksi Keamanan dari Panel Control ; Pengkabelan Ulang Wiring Hardness ; Injector, FIP, ( Fuel Injection Pump ) dan Turbo Sdh Di kalibrasi Ulang, dll Sesuai Dengan Instruksi manual Perkins Prosedure ; yg Sdh Di Ganti adalah : Oli Mesin ; Filter Oli ; Filter Solar dan Filter Udara dan Parts yg lain ketika di temukan kerusakan dan di ganti. Cranshaft ( Kruk As ), dan Camshaft ( Cam ) masih Standard Size ( Blm Oversize ) dan sdh Di Inspection, Assesment dan Di Ukur Ulang Disesuaikan dengan Standard Pabrikan Perkins.
Perfomance :
Beban 80 % Dari Kapasitas Genset Baru ( Kapasitas Genset Baru 30 Kva\24 Kw atau 36 Ampere Pada RPM 1500 : 100% load ) dan 80 % Beban Puncak Genset Bekas harus Tercapai ketika Di Test Load Bank dengan Perhitungan Beban adalah sbb : 30 Kva x 0,8 ( Pf ) = 24 Kw x 0,8 ( 80 % : Beban maksimal Genset Bekas ) = 19 Kw atau 29 Ampere. Nilai 29 Ampere Di Dapat dari 19 Kw : 0,66 ( 0,66 adalah Hasil Dari akar √3 dan 3 adalah 3 Phase ). Dan ini adalah Rumus atau Formula untuk Menghitung Nilai Beban Puncak - Genset Second.
19 Kw atau 29 Ampere adalah Hasil Test dari Beban Puncak Genset Second Yg Harus Tercapai Dan Di Janjikan ketika Genset Tersebut di Test Dengan LoadBank dan LoadBank itu sendiri Menggunakan Pemanas ( Heater ) Dan Kipas Sebagai Pendingin Heater yg Memiliki karakteristik beban Induktif dan Resistif dengan Cosphi 1. ( Pf 1 ).
Harga :
For Further Information The Detail Price By Requested and Detail Tehnical Specification, You Can Click The Title Below That Picture\Photo - Untuk Informasi Lebih Lanjut mengenai Harga dapat Menghubungi Kami Via Contact\Whatsapp ( WA ) dan Untuk Spesifikasi Tehnis anda dapat klik pada judul di Bawah Foto
