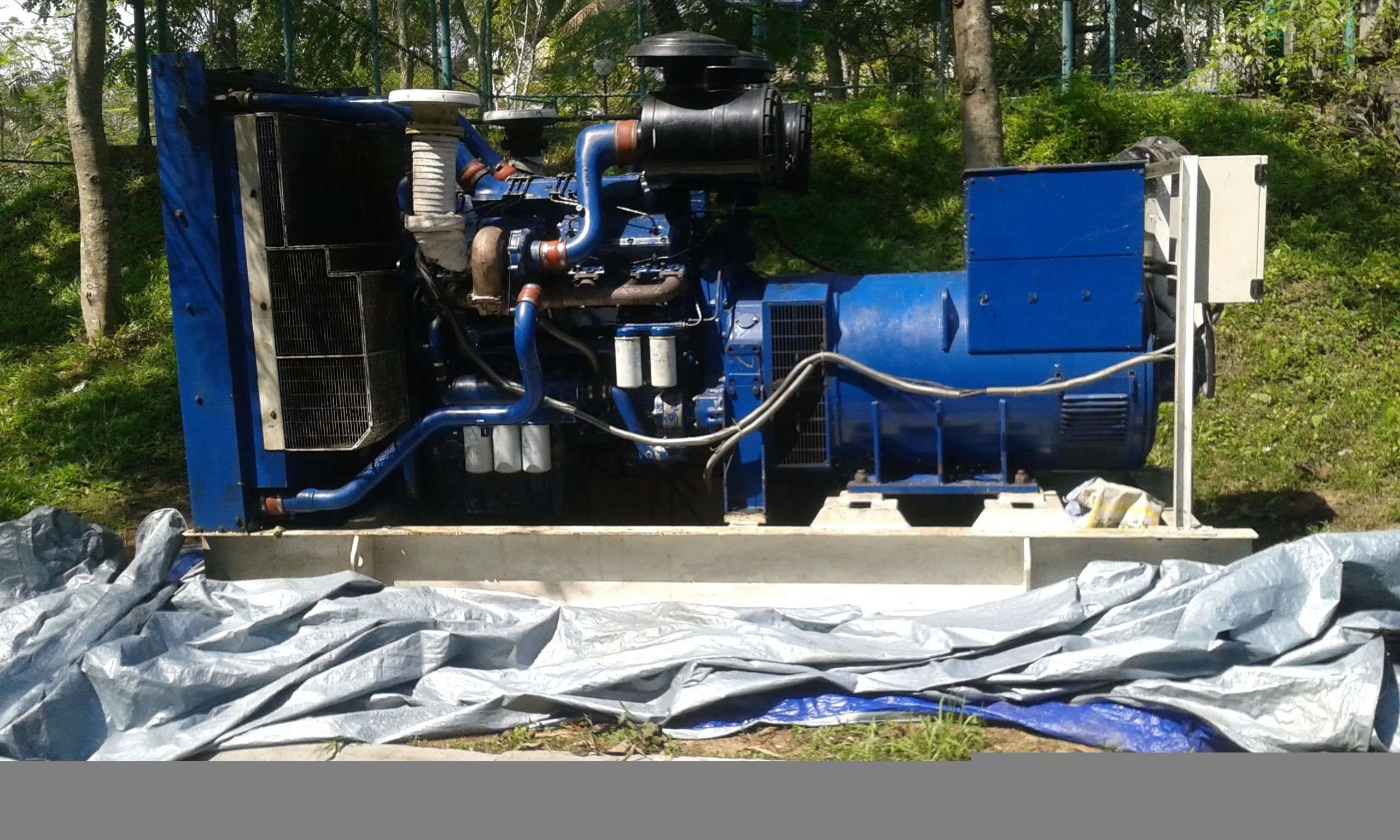

Genset Bekas Perkins Diesel Genset FG Wilson Engine Perkins 3012 TAG 2 + Stamford 750 Kva Tahun 2000
Introduction - For Your Need To Know :
These Used Genset Perkins are Coupled By FG Wilson, A Genset manufacturing in United Kingdom the Group of Caterpillar Electric. Using Engine Type 3012-TAG2, Capacity 750 Kva ; Open Type ; This Type Engine Perkins is the Part of 3000 Series Family Engine ; With 12 Cylinder 60° Vee Engine ; 26.11 liter\26.000cc is the Big Displacement make this Engine Have A Strong Power and Torsion in A Every moment that you need a More Power. This Engine Design and Build From More Than 20 Years Ago ; But After 2002-2003, This Type Engine Already Discontinued From The Line Of Production and Then As A Replacement of 3000 Series Family Engine, Perkins. Co.Ltd Launch A New Series of 4000 Series With Configuration Engine Inline 6 ( Six ) and Inline 8 ( Eight ) ; Where it Previously 4000 Series Family Engine Only Had Engine Line Up With 12 Cylinder and 16 Cylinder in a 60° V Engine. And That You Need to know, Perkins 3000 Series Is the Well Known Engine In The World in its Era and Till Now to Be a Legend Because Of Durability, Performance, and Efficient.
History ( Back Ground ) of the Genset\ Diesel Generator Set :
Year Of Manufacturing 2000 ; Eks Stand By Office (Back up Power Only) ; Low Hour Operations ; Original Digital Control Panel By deepsea ; Build Up From UK ; Coupled In England By FG-Wilson ; ; In Good and Clean Condition ; Ready Prepare For Test Load Bank\Perfomance and Ready to Apply For that meet Your Power Electrical Requirement.
Detail Specification and Data Sheet :
Engine 3012-TAG2 ; Turbocharged, Air-to-Air Charged Cooled ; 12 Cylinder 60° Vee Engine ; Direct Injection ; 4 Stroke ; Bore x Stroke : 135 x 152 mm ; Displacement : 26.11 Liter\26.000cc ; Compression Ratio 14.5 : 1 ; Oil Capacity 122.5 liter ; Watercooled ; Generator Leroy Somer ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. With Capacity 750 Kva Prime Rating or 600 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel for Genset Controller By Deepsea or Analog Metering As an Original ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; New Painting Colour like an Original Paint or We can Change The Paint of Colour according to customer request ; Performance Test By Using Load Bank\Dummy Load equipment at Workshop.
Warranty :
3 ( Three ) Month or 500 Hour Operations Which ever come First Since Delivery unit ; Include Service Of Labour, Without Parts and Exclude Any Damages of this Genset if There is an Operational Error Occurs on site or Force Major.
Note And Important Information Related of This Unit
Engine Condition :
Hour Meter 12.000 Hour ( Before Periodical Service ), And Already Inspection, Assement, and Servicing Covers All of Genset : for Leaking oil ; Van Belt ; Alternator Charging ; Generator Merge Test ; Function Test of Device Protection Panel Control : Rewiring Cable Hardness ; Injector and FIP ( Fuel Injector Pump ) Calibration ; Turbo, Etc. In Accordance With The Perkins manual Maintenance Procedure. Replacement : Engine Oil ; Oil Filter ; Fuel Filter ; Air Filter and any Other Parts While it Find Damages and Replacement. Crankshaft and Camshaft Both Of Them it Already Inspection, Assesment and Re-measurent and Still Standard Size Accordance From the Perkins manufacturing.
Perfomance :
80 % Load from The Brand New Genset Capacity - Brand New Capacity load is : 750 Kva \600 Kw or 910 Ampere @1500RPM ; 100% Load ). And The 80% Peak Power that it must be Achieved When the Unit Tested is ( The Calculation of Peak Power 80% Load - Genset Second ) : 750 kva x 0,8 (pf) = 600 Kw x 0,8 ( 80% ; Because of Second Hand Unit ) = 480 Kw or 727 Ampere ; ( 480 Kw : 0,66 = 727 Ampere ) ; ( 0,66 Result from √3 ; 3 is 3 Phase ) This is The Formulas to Calculation a Peak Power\Performance - Second Hand Genset.
480 Kw or 727 Ampere is the test result a Peak Power of Genset Second, and that It be a Promise must be achieved While tested with the loadbank ; Loadbank Equipment Using A heater and Cooling Van, that have load Characteristic Resistive and Inductive with have 1 Cosphi ( Pf ).
Description:
Introduction :
For Your Information Diesel Generator ( Genset ) Bekas Tersebut di atas Berkapasitas 750 Kva Prime Rating\600 kw dan menggunakan Engine Perkins Type 30012-TAG2. Dimana Type Engine Tersebut menjadi salah satu line up dalam family Engine 3000 Series Perkins dengan configurasi 12 Cylinder 60° Vee Engine ; Displacement 26.11 liter\26.000cc. Sehingga membuat Engine ini Memiliki Power output dan Torsi yg besar di semua lini mulai dari torsi bawah sampai Torsi Puncak. Hal ini sebabkan krn Penggunaan Turbocharged Air-to-Air Chargedcooled. Di Coupled Oleh FG-Wilson Sebuah Perusahaan Pabrikan Genset di United Kingdom ; Group oleh Caterpillar Electric dari USA dengan Menggunakan Generator Leroy Somer, Sebuah Perusahaan Generator Kelas Dunia yg sdh Terkenal dengan Reputasinya membuat Genset ini menjadi sangat Durable, Strong dan Effisien. Durable, Strong dan Effisien Krn Engine Type 3012-TAG2 ini Masih Menggunakan Manual Priming Pump ( Manual FIP\Fuel Injector Pump ) dan Manual Injector Sehingga Genset Sangat Cocok di gunakan di Wilayah\Teritory dengan Kualitas Solar\Diesel Fuel yang Kadar Sulfur nya tinggi dan kadar Cetane-nya Rendah. Sehingga Perawatan Engine Pada Genset ini Sangat Mudah Dan Murah.
History ( Back Ground ) Dari Genset Tersebut Di atas :
Tahun Produksi 2000 ; Bekas Pemakaian Office dan Hanya Sebagai Backup Power saja dengan Perawatan Berkala yg Rutin ; Hour Operation Masih Rendah ; Original Control Panel Analog ; Genset Tersebut di atas Di Coupled dan di Assembly oleh FG - Wilson, dan COO ( Cerficate Of Origin ) Engine ini Dari United Kingdom ; Dalam Kondisi Prima dan sangat Terawat\bersih ; Siap untuk Test Run dan Loadbank\Performance dan Di Pakai untuk Menjawab Kebutuhan Power.
Detail Specification and Data Sheet :
Engine 3012-TAG2 ; Turbocharged, Air-to-Air Charged Cooled ; 12 Cylinder 60° Vee Engine ; Direct Injection ; 4 Stroke ; Bore x Stroke : 135 x 152 mm ; Displacement : 26.11 liter\26.000 cc ; Compression Ratio 14.5 : 1 ; Oil Capacity 122.5 liter ; Watercooled ; Generator Leroy Somer ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. Dengan Kapasitas 750 Kva Prime Rating atau 600 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel By Deepsea ( Original ) atau Analog\Metering spt Kondisi Original ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; Sdh Di Painting Ulang sesuai Dengan Warna Pabrikan aslinya atau Bisa Di Rubah Warna Catnya sesuai dengan Permintaan Customer ; Performance Test dengan Menggunakan Loadbank\Dummy Load di Workshop.
Garansi :
3 ( Tiga ) Bulan atau 500 Jam Operasional Mana Yg Tercapai Terlebih Dahulu Sejak Unit Di Kirim. Dan Cover Garansi Hanya Jasa Only di Luar Spare Part dan Tidak Termasuk dengan Kerusakan Genset yg Disebabkan oleh Kesalahan Operasional di Site maupun Force major.
Note And Important Information Related of This Unit
Engine Condition :
Hours Meter Sebelum Di Lakukan Perawatan Berkala di Workshop adalah 12.000 Jam Dan Sudah di lakukan Inspection, Assesment dan Perawatan yg Meliputi : Kebocoran Oli, Kelayakan van Belt ; Alternator Charging ; Merge Test Generator ; Test Fungsi Proteksi Keamanan dari Panel Control ; Pengkabelan Ulang Wiring Hardness ; Injector, FIP, ( Fuel Injection Pump ) dan Turbo Sdh Di kalibrasi Ulang, dll Sesuai Dengan Instruksi manual Perkins Prosedure ; yg Sdh Di Ganti adalah : Oli Mesin ; Filter Oli ; Filter Solar dan Filter Udara dan Parts yg lain ketika di temukan kerusakan dan di ganti. Cranshaft ( Kruk As ), dan Camshaft ( Cam ) masih Standard Size ( Blm Oversize ) dan sdh Di Inspection, Assesment dan Di Ukur Ulang Disesuaikan dengan Standard Pabrikan Perkins.
Perfomance :
Beban 80 % Dari Kapasitas Genset Baru ( Kapasitas Genset Baru 750 Kva\600 Kw atau 910 Ampere Pada RPM 1500 : 100% load ) dan 80 % Beban Puncak Genset Bekas harus Tercapai ketika Di Test Load Bank dengan Perhitungan Beban adalah sbb : 750 x 0,8 ( Pf ) = 600 Kw x 0,8 ( 80 % : Beban maksimal Genset Bekas ) = 480 Kw atau 727 Ampere. Nilai 727 Ampere Di Dapat dari 480 Kw : 0,66 ( 0,66 adalah Hasil Dari akar √3 dan 3 adalah 3 Phase ). Dan ini adalah Rumus atau Formula untuk Menghitung Nilai Beban Puncak - Genset Second.
480 Kw atau 727 Ampere adalah Hasil Test dari Beban Puncak Genset Second Yg Harus Tercapai Dan Di Janjikan ketika Genset Tersebut di Test Dengan LoadBank dan LoadBank itu sendiri Menggunakan Pemanas ( Heater ) Dan Kipas Sebagai Pendingin Heater yg Memiliki karakteristik beban Induktif dan Resistif dengan Cosphi 1. ( Pf 1 ).
Harga :
For Further Information The Detail Price By Requested and Detail Tehnical Specification, You Can Click The Title Below That Picture\Photo - Untuk Informasi Lebih Lanjut mengenai Harga dapat Menghubungi Kami Via Contact\Whatsapp ( WA ) dan Untuk Spesifikasi Tehnis anda dapat klik pada judul di Bawah Foto
